The Sydney Opera House‘s forecourt sails have sheltered visitors since 2016, proving that modern tensile structures can transform exposed spaces into functional outdoor rooms. You’ll find that contemporary shade sail installations require precise angle calculations—typically 20-30 degrees for ideal water runoff—and strategic anchor point placement to achieve both structural integrity and aesthetic impact. What separates amateur installations from professional-grade systems comes down to understanding fabric tension ratios, wind load coefficients, and the interplay between multiple sail geometries.

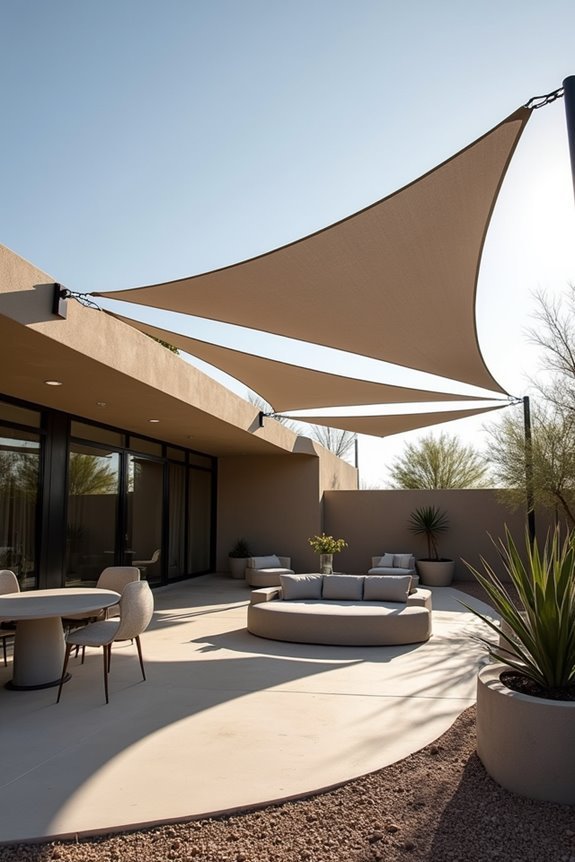

Contemporary Geometric Shade Sail Designs
While traditional rectangular shade sails remain popular, contemporary geometric designs leverage angular configurations to maximize coverage and create striking visual statements. You’ll achieve ideal spatial efficiency by combining triangular and hyperbolic forms that direct tension forces effectively across mounting points. These innovative material choices include high-density polyethylene fabrics with UV ratings exceeding 95%, ensuring durability in harsh conditions.
Your aesthetic design considerations should address both form and function. Position overlapping sails at varying heights to create dynamic shadow patterns while enhancing airflow beneath the canopy. Calculate anchor point placement using structural load requirements—typically 300-400 pounds per connection. Strategic color selection amplifies architectural elements; darker hues provide superior UV protection, while lighter tones reflect heat and brighten enclosed spaces effectively.
[affiai keyword=”contemporary geometric shade sails” template=”carousel” count=”3″]

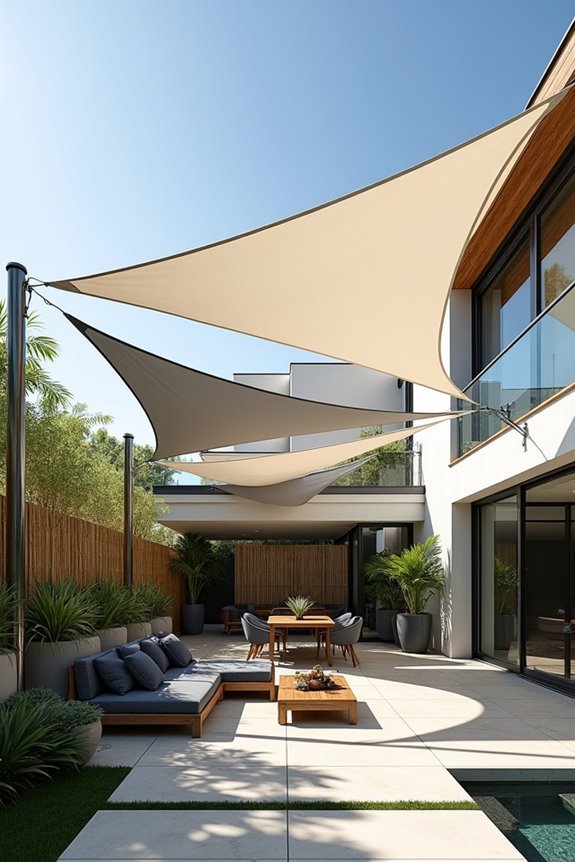

Triangular Multi-Layer Canopy Systems
Because triangular configurations distribute tensile loads more efficiently than other geometric forms, you’ll find multi-layer canopy systems offer superior structural performance in high-wind environments. Stacking triangular sails at varying heights creates dynamic shadows while maintaining ideal airflow between layers. Position your primary sail 12-15 feet overhead, with secondary panels offset 18-24 inches below to prevent water pooling and enhance design versatility.
Orient each triangle’s apex toward prevailing winds to minimize flutter and reduce anchor point stress. This layered approach transforms interior outdoor spaces by establishing distinct atmospheric zones without solid barriers. Install contrasting sail colors or graduated opacity levels to emphasize depth perception. Guarantee minimum 6-inch vertical separation between layers, allowing thermal convection while preventing fabric-to-fabric contact during wind events.
[affiai keyword=”triangular multi-layer canopy systems” template=”carousel” count=”3″]

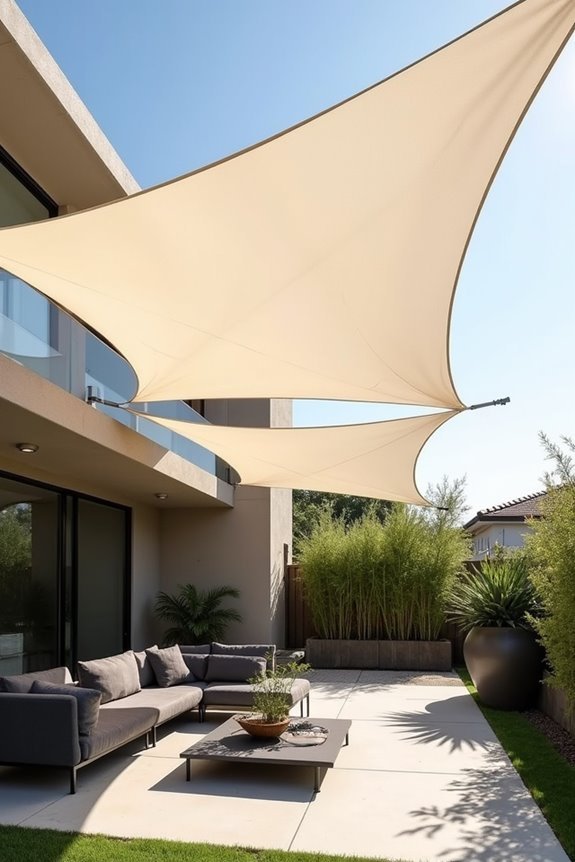

Curved Overlapping Fabric Panels
Curved overlapping fabric panels redirect wind forces laterally rather than absorbing them head-on, reducing structural load by 30-40% compared to flat installations. You’ll achieve peak performance by positioning each panel’s leading edge 18-24 inches above the trailing edge of its neighbor, creating aerodynamic channels that accelerate airflow rather than trap it.
These curved designs require hyperbolic paraboloid geometry—mount anchor points at varying heights to generate natural fabric tension. Your overlapping fabrics should maintain 15-20% surface curvature to prevent water pooling while maintaining structural integrity during 45+ mph wind events.
Space mounting points 12-16 feet apart for residential applications. You’ll need engineered tension calculations for spans exceeding 20 feet. Install stainless steel hardware rated for 2,000-pound minimum breaking strength at each connection point.
[affiai keyword=”curved overlapping fabric panels” template=”carousel” count=”3″]

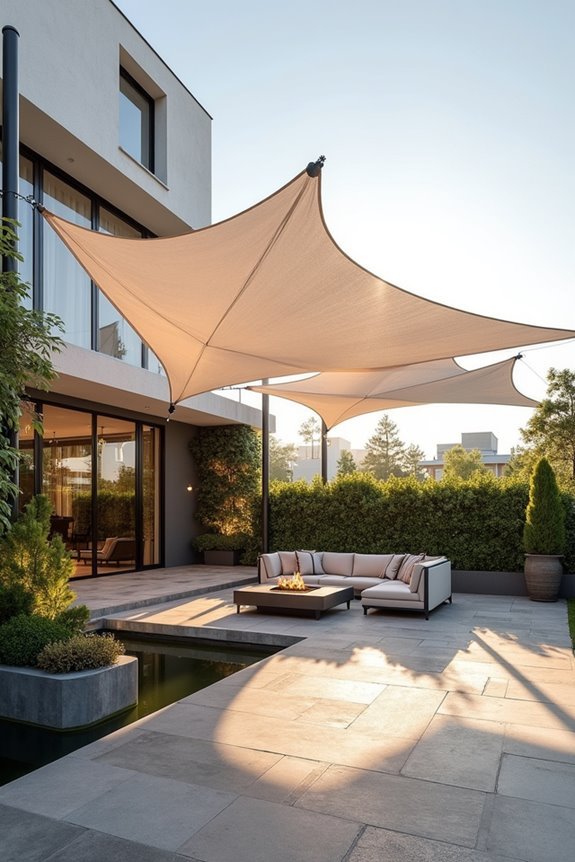

Hexagonal Interlocking Sail Configurations
Hexagonal interlocking sail configurations distribute tension loads across six symmetrical anchor points, creating structural redundancy that allows individual panels to support adjacent units during asymmetric wind loading. You’ll achieve ideal coverage by positioning each hexagon’s vertices at 60-degree intervals, ensuring corner-to-corner alignment with neighboring panels. This geometry maximizes shade density while maintaining airflow through strategic gaps between units.
When you’re planning hexagonal patterns, calculate your site’s solar path to orient interlocking designs perpendicular to peak sun angles. You’ll need steel posts rated for combined lateral forces, as interconnected panels transfer accumulated loads to perimeter anchors. Space your hexagons with 150-200mm overlaps to prevent gap expansion during fabric contraction. This configuration works best for commercial installations requiring extensive coverage without center-point support structures.
[affiai keyword=”hexagonal interlocking sail configurations” template=”carousel” count=”3″]
Retractable Motorized Shade Systems
Motorized retractable systems give you dynamic control over shade coverage through rail-mounted fabrics that extend and retract on demand. You’ll integrate these systems into pergola structures, building facades, or freestanding frames where variable sun exposure requires adaptable solutions. The motorized automation operates via remote control, smartphone apps, or programmable timers that respond to light sensors and wind conditions.
Installation requires precise measurements for track alignment and proper fabric tensioning mechanisms. You’ll need electrical connections for motor units, though solar-powered options eliminate hardwiring requirements. Track systems accommodate fabric widths from 8 to 40 feet, with multiple sails operating independently or synchronously. The ease installation improves when mounting points align with existing structural elements. Select UV-resistant, waterproof fabrics rated for repeated extension cycles, ensuring long-term durability in automated applications.
[affiai keyword=”retractable motorized shade systems” template=”carousel” count=”3″]
Color-Changing LED Integrated Sails
LED-integrated shade sails transform functional sun protection into programmable lighting features that establish ambiance while maintaining UV-blocking performance. You’ll find these systems incorporate addressable RGB strips along sail edges or embedded within translucent fabric layers, enabling dynamic color sequences controlled via smartphone applications or programmed timers. The color changing technology allows you to shift outdoor aesthetics from warm whites for dining to saturated hues for entertainment zones. Consider your electrical infrastructure requirements—these installations demand weatherproof power supplies, low-voltage wiring concealed within tensioning cables, and GFCI protection. Position LED elements to highlight architectural features or define spatial boundaries after dark. Select fixtures rated IP65 minimum for moisture resistance. Programming capabilities include fade changes, scene presets, and synchronization with music systems, expanding your outdoor space’s functional hours while reinforcing design intent through controllable illumination.
[affiai keyword=”color changing LED outdoor shade sails” template=”carousel” count=”3″]

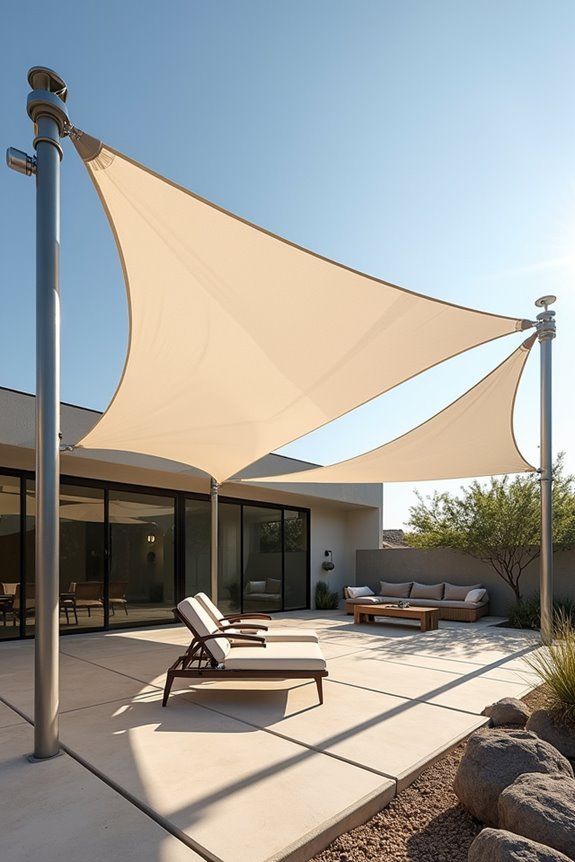

Smart Sun-Tracking Automated Sails
Advanced automation systems take shade sail functionality beyond static lighting by responding directly to solar position throughout the day. You’ll find motorized tensioning mechanisms paired with GPS-coordinated sensors that calculate ideal sail angles for maximum coverage. These automated tracking systems adjust your shade’s orientation every 15-30 minutes, maintaining consistent protection as the sun moves across the sky.
Solar panel integration powers the entire system off-grid, eliminating electrical infrastructure costs while enabling remote location installations. You can program specific coverage zones—protecting your dining area during lunch hours or your pool deck throughout afternoon sessions. The technology calculates shade projection based on your geographic coordinates, seasonal variations, and landscape features. Installation requires structural engineering assessment, as motorized components increase wind load requirements and demand reinforced mounting points with precise load distribution calculations.
[affiai keyword=”sun-tracking automated shade sails” template=”carousel” count=”3″]

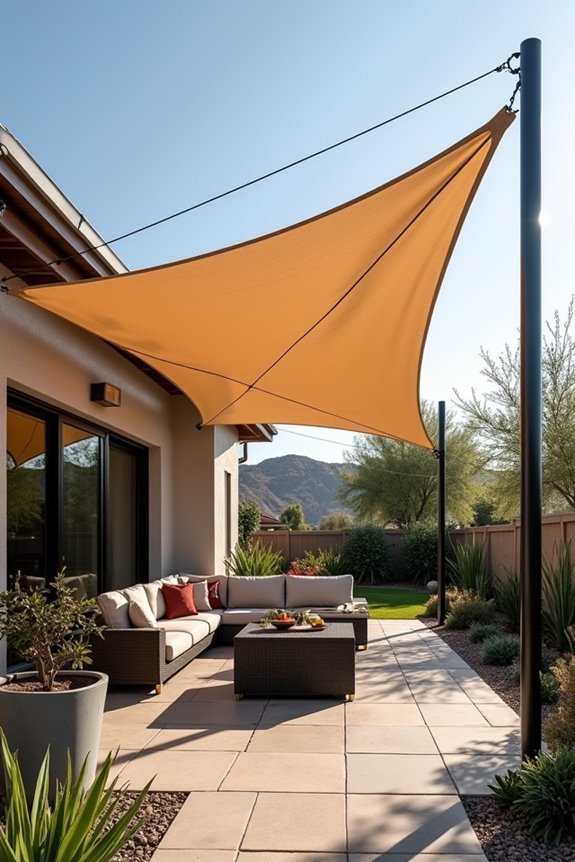

Tension Cable Installation Methods
Three primary cable routing configurations determine your shade sail’s structural integrity and weather resistance: perimeter-mounted, through-point, and hybrid tension systems.
Perimeter-mounted systems run cables along your sail’s edges, distributing loads across anchor placement points spaced 8-12 feet apart. You’ll achieve peak performance when anchor placement aligns with load vectors at 45-degree angles from horizontal. Through-point configurations thread cables directly through reinforced grommets, requiring precise cable tensioning to prevent fabric stress concentrations.
Hybrid systems combine both methods, offering superior load distribution in high-wind areas. You’ll need turnbuckles rated 20% above calculated loads for proper cable tensioning. Install cables with 2-3% pre-tension, then adjust incrementally while monitoring fabric wrinkles. Stainless steel 316-grade cables resist corrosion in coastal environments.
[affiai keyword=”shade sail tension cable” template=”carousel” count=”3″]
Stainless Steel Anchoring Posts
Marine-grade stainless steel posts form the foundation of your shade sail system, with 316-grade material specifications essential for installations within 10 miles of saltwater. You’ll need posts ranging from 3 to 6 inches in diameter, selected based on sail size and wind load calculations specific to your location.
Stainless steel durability extends your installation’s lifespan beyond 20 years when properly specified. Post height should exceed your desired shade clearance by 18 inches minimum, accounting for anchor design depth requirements of 36 to 48 inches below grade.
Concrete footings must measure three times the post diameter, with rebar reinforcement positioned according to local engineering standards. You’re investing in structural integrity that withstands sustained tension forces while maintaining aesthetic refinement.
[affiai keyword=”stainless steel anchoring posts” template=”carousel” count=”3″]
Reinforced Corner Grommets
Heavy-duty grommets at each corner of your shade sail transfer tensile loads exceeding 400 pounds per attachment point during normal wind conditions. You’ll need marine-grade stainless steel D-rings with double-stitched reinforcement patches to maintain grommet durability throughout seasonal stress cycles. The reinforcement zone extends 6-8 inches from each corner, distributing point loads across woven fabric layers.
Your installation techniques must account for dynamic loading patterns. Position grommets at precise tension angles between 20-40 degrees to prevent corner tearing. Use turnbuckles with swaged terminals rather than standard carabiners—they’ll provide incremental adjustment while maintaining consistent pressure distribution. Inspect UV-stabilized webbing annually, as degraded reinforcement compromises structural integrity. Pre-tension connections to 15% of maximum load capacity before final adjustment, ensuring uniform stress distribution across all attachment points.
[affiai keyword=”shade sail grommets and reinforcements” template=”carousel” count=”3″]

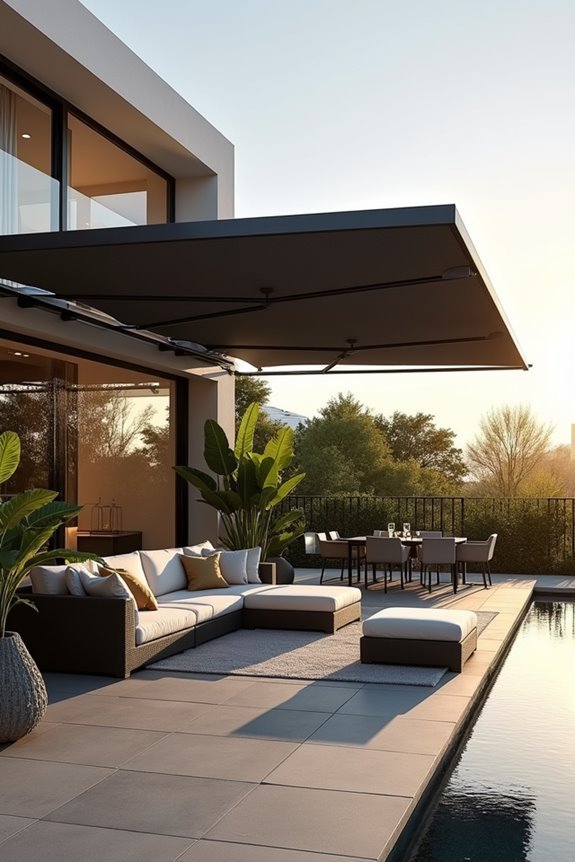

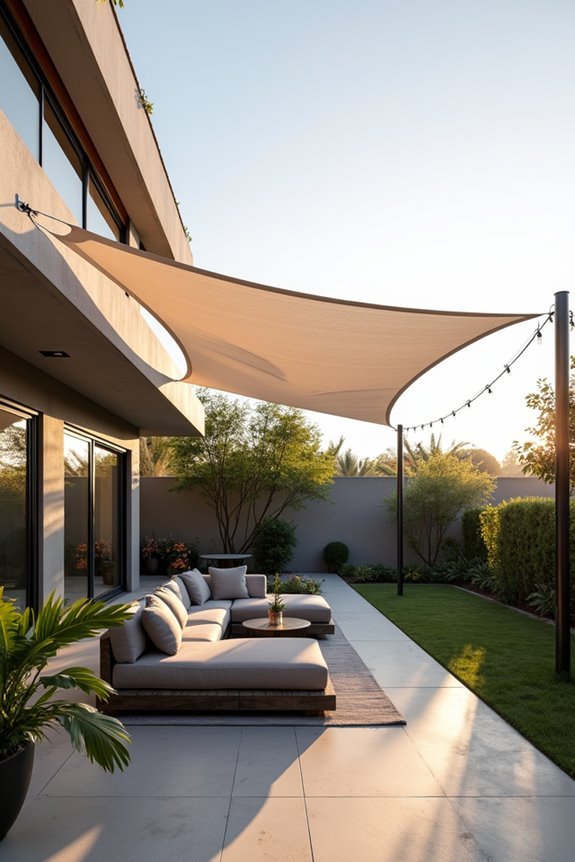

UV-Resistant Fabric Material Options
While high-density polyethylene (HDPE) fabric dominates the shade sail market with 85-95% UV blockage ratings, you’ll find significant performance variations between knitted and woven construction methods. Knitted HDPE offers superior breathability and prevents water pooling, while woven polyester delivers enhanced fabric durability in high-wind coastal installations.
You’ll need to assess your site’s microclimate when selecting materials. Solution-dyed acrylics provide exceptional colorfast materials performance, resisting fading for 5-7 years in direct sun exposure. However, they’re heavier and require reinforced mounting points.
For commercial applications, consider PVC-coated polyester with sealed seams. It delivers waterproof coverage and maintains tensile strength exceeding 200 pounds per linear foot. Marine-grade specifications guarantee resistance to salt spray, chlorine exposure, and thermal expansion across temperature fluctuations.
[affiai keyword=”UV resistant fabric materials” template=”carousel” count=”3″]
High-Density Polyethylene HDPE Weave
As the industry standard for residential shade installations, high-density polyethylene weave construction delivers a 190-220 GSM (grams per square meter) fabric density that directly correlates with UV protection rates and structural longevity. You’ll find that tighter weave patterns create smaller apertures between fibers, enhancing durability benefits through superior tear resistance and edge stability under tension loads.
The material’s knitted construction—rather than woven—permits controlled stretch that accommodates thermal expansion without fabric degradation. For maintenance tips, you should rinse your HDPE sail quarterly with low-pressure water to remove accumulated debris and pollutants that can compromise the UV-stabilized additives embedded within the polymer structure. This minimal upkeep preserves both the fabric’s protective capabilities and aesthetic consistency throughout its 8-12 year service life.
[affiai keyword=”high-density polyethylene weave” template=”carousel” count=”3″]

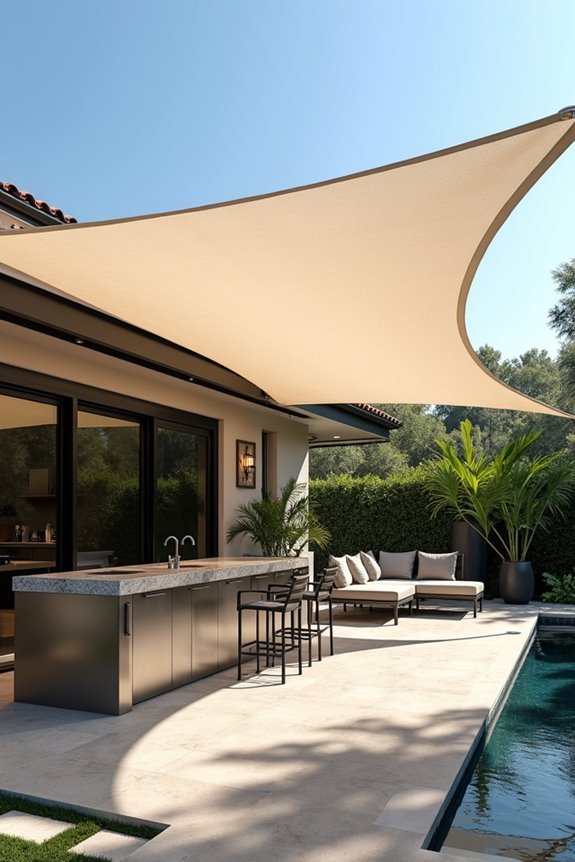

Waterproof PVC-Coated Polyester Fabric
Waterproof PVC-coated polyester fabric combines a high-tenacity polyester scrim base with thermoplastic polymer coating layers, achieving total water impermeability at 450-650 GSM—substantially denser than breathable HDPE alternatives. You’ll find this material essential for poolside installations, outdoor kitchens, and entertainment zones requiring absolute rainfall protection. The PVC coating guarantees waterproof performance through heat-sealed seams, preventing moisture penetration that would compromise underlying structures or furnishings.
Consider fabric durability when selecting coating specifications—UV-stabilized formulations resist chalking and cracking across 1,500-2,000 UV exposure hours. You must account for weight-to-span ratios, as increased density demands reinforced anchor points and tensioning hardware. Install with minimum 8% slope to facilitate drainage, preventing water pooling that stresses attachment points and distorts membrane geometry. This configuration delivers thorough weather protection for year-round outdoor living applications.
[affiai keyword=”waterproof outdoor fabric” template=”carousel” count=”3″]
